Properties

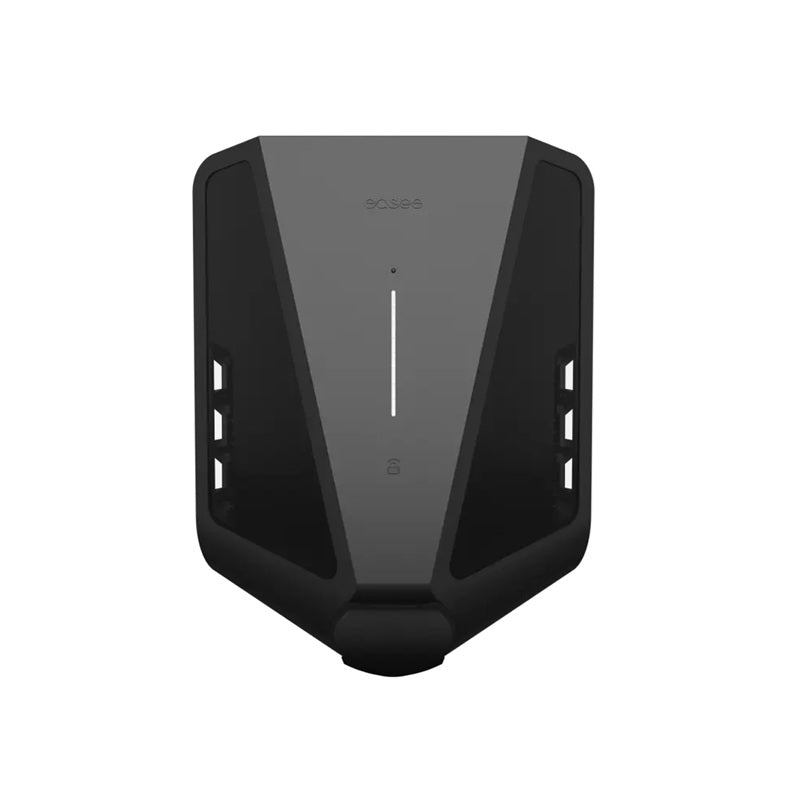

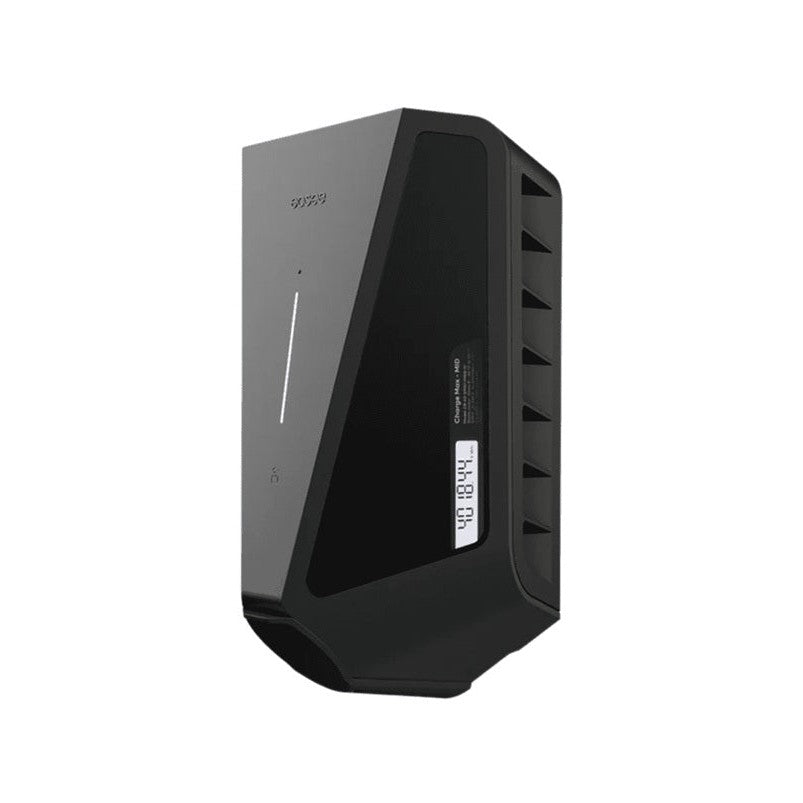

Easee Charge Max - MID class B - RFID - 22 KW - black - EAS10233



The Easee Charge Max charging station is a smart 22 kW charging station with an integrated MID-certified energy meter. This makes this charging solution particularly suitable for business drivers, employers, shared charging points and situations where accurate kWh registration is important, such as expense claims, settlement and ERE registration.

Thanks to dynamic load balancing, automatic phase balancing, app control, RFID access and preparation for bidirectional charging, the Easee Charge Max is a future-proof choice for home and business charging.



  • Voltage: 3x 230 V / 400 V AC (±10%); 50 Hz
  • Power grid: TN, IT, TT
  • 1-phase: 1.4 kW (6 A) – 7.4 kW (32 A); 3-phase TN: 4.1 kW (6 A) – 22 kW (32 A); 3-phase IT: 2.4 kW (6 A) – 12.7 kW (32 A)
  • The charging cable can be permanently locked in the charging station. Padlock bracket for theft protection.
  • Overload protection according to EN IEC 61851-1:2019
  • Integrated residual current protection type A 30 mA AC according to EN 60947-2, and 6 mA device for residual direct current detection (RDC-DD) according to IEC 62955, 9.9
  • Built-in energy meter MID Class B (±1%) according to EN 50470-3
  • Wi-Fi 2.4 GHz b/g/n
  • Bluetooth 4.2
  • Built-in LTE CatM1
  • OCPP 1.6J
  • Easee LinkTM 868 MHz Radio*

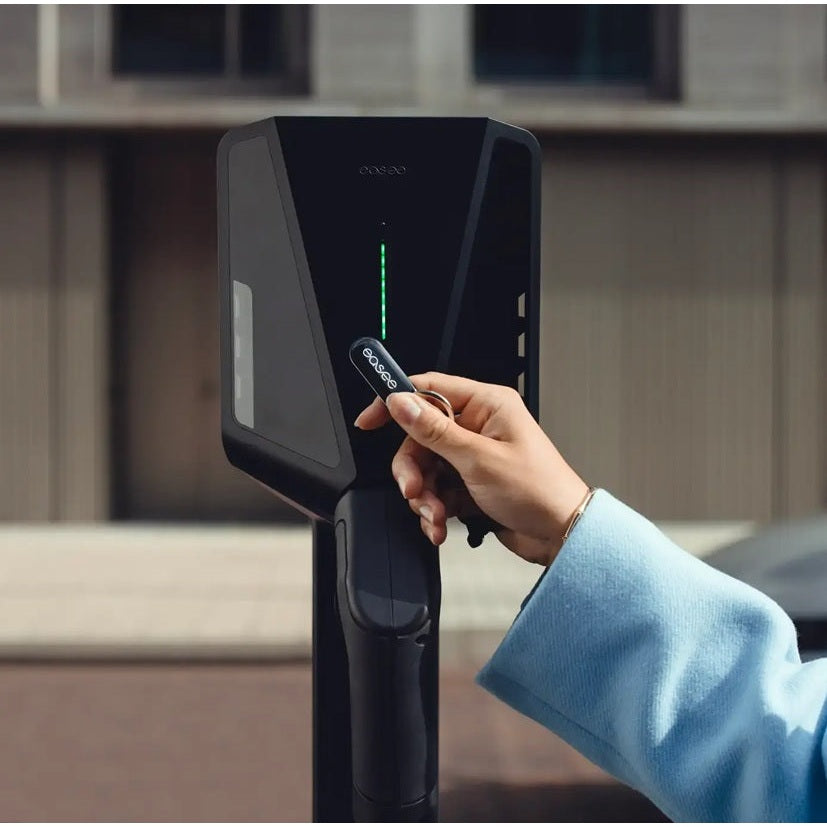

  • Built-in RFID/NFC reader for access control

  • Automatic adjustment of charging speed based on available current*
    Automatic charging with solar energy (Equalizer required)



MID-certified

Future-proof charging station with integrated energy meter, allowing charging costs to be accurately calculated for precise settlement with, for example, your employer in accordance with the EU Measuring Instruments Directive.

Charge up to 22 kW

Charge up to 22 kW (32A) on a 3-phase circuit and up to 7.4 kW (32A) on a 1-phase circuit.

All-in-one charging station

Suitable for home charging – supports all EVs, phases, and power grids. An existing charger can be easily upgraded by reusing the already installed backplate.

Dynamic phase and load balancing

Dynamic phase and load balancing ensure optimal energy consumption and fuse protection.





PDF product sheet


Installation Manual



User Manual
